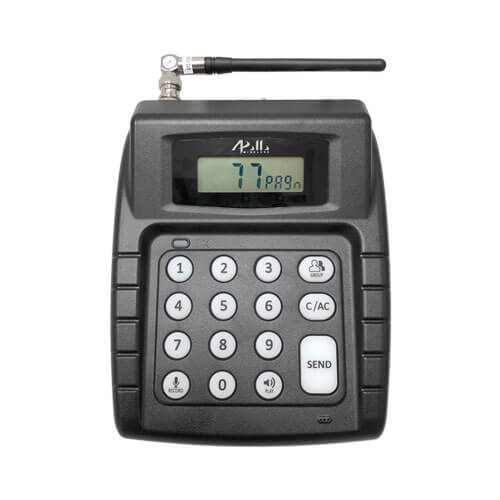

Desktop Paging Base Station TE-505NV


Voice communication is the most familiar way to people. Gold Apollo has dedicated to various paging applications over decades.
Make things better and useful are always our main goal. Now we introduce Wireless Paging Base Station TE-505NV and voice pager VP-101 even affordable for general purpose.
Under any circumstance, you won’t miss any voice calling from critical personnel. Need no software and any complicated setting.
You can use it immediately with ease.


  • Desktop Voice Transmitter
  • LED Backlit, Keypad Click Sound
  • Supports pager types: Two-Tone Voice Pager
  • Wireless Paging Base Station TE-505NV is also a programmer (need a jig)
  • Output Power:100mW, 1W
  • Voice Operation Guide
  • Built-in speaker and microphone
  • Microphone Jack
  • Group Call Support (number of pagers has no limits)
  • 30 sets of 10 sec Pre-Programmed Voice Message
  • Replayable Pre-programmed Voice Message
  • Instant Recording Function
  • 8 groups of contact for each TE-505NV, the 9th group contains all contacts of voice pager
  • Active Voltage Range: DC 9V
  • The coverage can reach up to 0.8-1 KM in open space, while it’s about 200-300 meters indoor
  • Coverage can be expandable by 5W amplifier (only at UHF band)

Additional information


VHF 135~174 MHz, UHF 430~470 MHz

Output Power

100mW, 1W

Channel Spacing

12.5KHz, 25KHz

Harmonic Radiation

– 60 dBc or less -36dBm

Frequency Stability

±2.5 ppm at -10°C~+60°C

Output Connect



154 (L) x 190 (W) x 64 (H) mm (Without Antenna and Keyboard)


390 g
