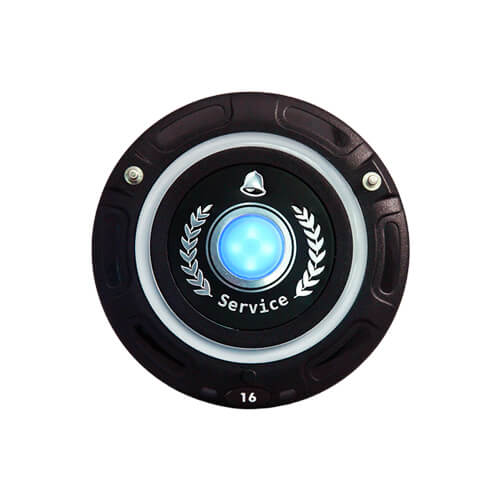

Wireless Waiter Call Button TB-A06

SKU:TB-A06


• Blue light indication
• UHF band
• Rechargeable
• Waterproof IP54

Description

More Detail:

• Blue light indication
• UHF band
• Rechargeable
• Waterproof IP54
• One push button
• Increase service quality
• Simple self installation
• Easy to use
• No software required
• Completely wireless
• 3.6 ~ 4.5V Battery Package (3 pcs Ni-MH Rechargeable battery 1.2V)
• 20 times per day : 30 days (without charging)

Additional information

Frequency

UHF 865~875 MHz

Output Power

10mW

Transmission Radius

400mm

Channel Spacing

12.5KHz, 25KHz

Maximum Deviation

±2.5kHz, ±4.5kHz

Baud Rate(bps)

1200

Conducted Spurious Emission

less – 55dBc

Frequency Stability

±3.5ppm for UHF

Operating power

3.6~4.5V Battery package (3 pcs Ni-MH Rechageable battery 1.2V)

Standby

< 0.3mA

Transmit

50 ~ 57mA

Operation Temperature

-10º to 60º C

Low Battery Alert level

< 3.65 V

Storage Temperature

-10º to +60º C

Dimension

110(Diameter)X 16.2(H) mm

Weight

55 g

TB-A06+RE300
[ USER MANUAL ]
