Touchsreen Transmitter (SC-800A)
SKU:SC-800A- Easy contact management.
- Convenient messaging methods.
- Compatibility with different message formats.
- Optional alarm input support.
- A perfect solution for fast-food restaurants, restaurants, hotels, dining halls, cafés, bars, and other communication-demanding environments.
描述

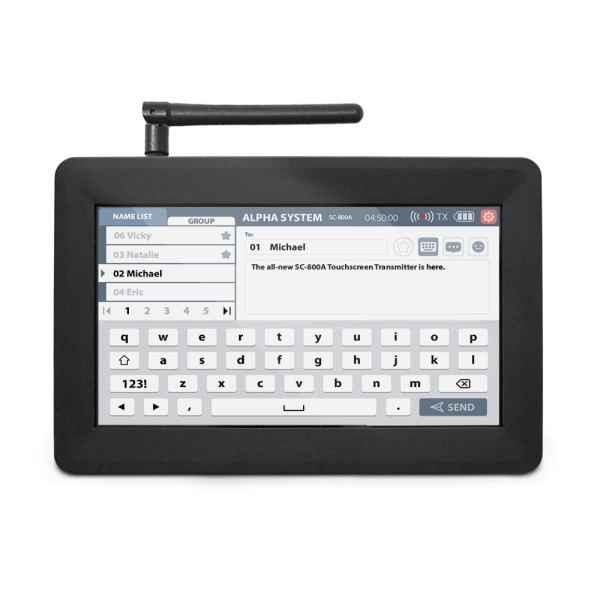

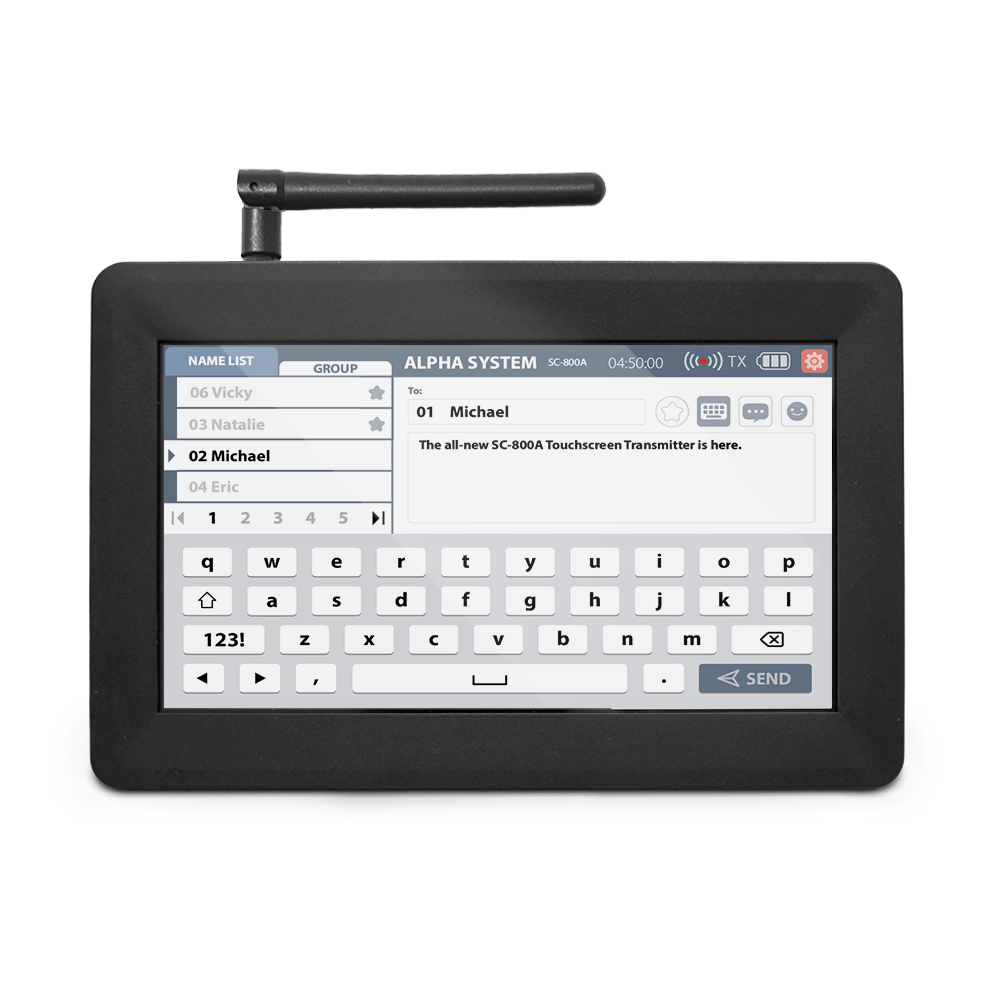

The SC-800A is a next-generation wireless touchscreen transmitter designed for smarter, faster communication.

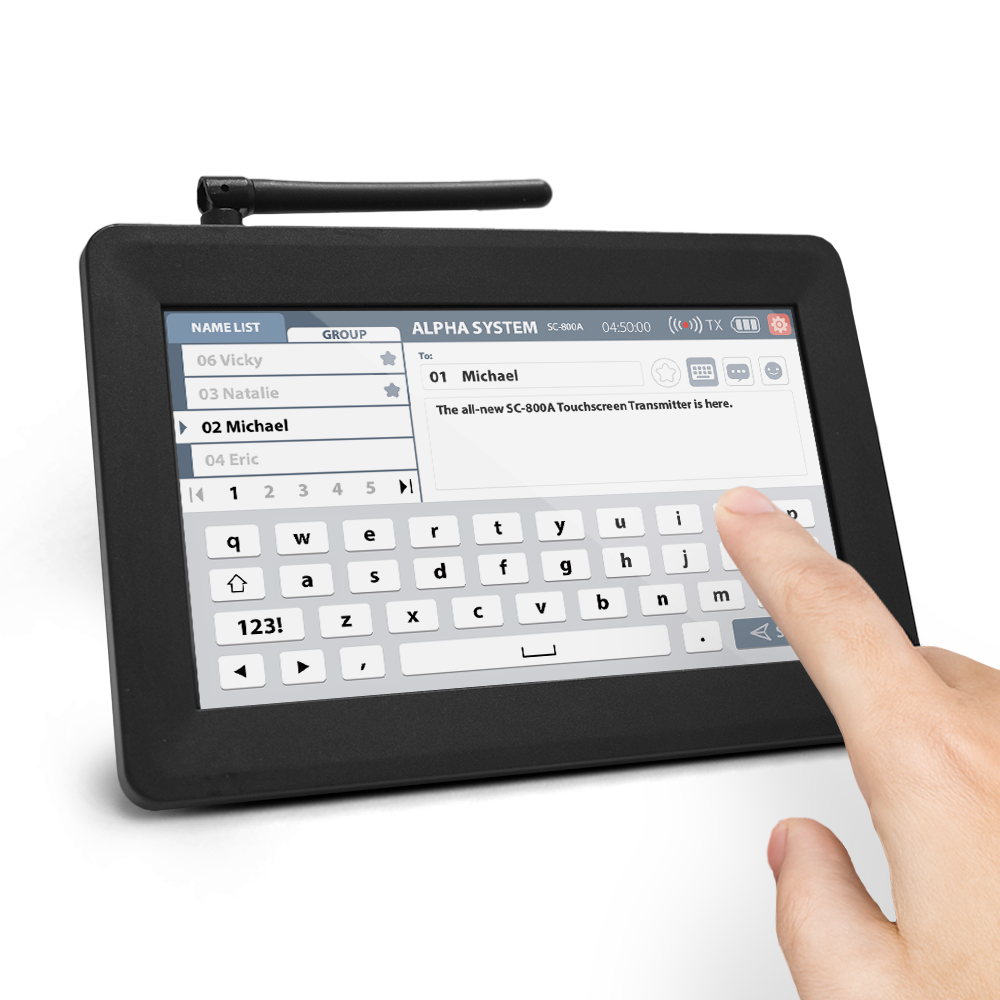

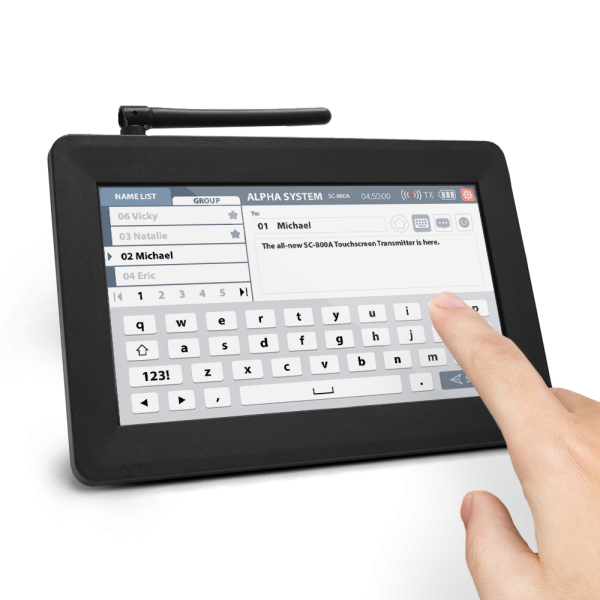

Featuring a 7-inch color touchscreen, it delivers clear visuals and an intuitive user experience, allowing users to manage contacts, send messages, and operate with ease.
The SC-800A supports up to 80 editable contacts and offers three messaging modes—keyboard input, canned messages, and stickers—making information delivery more flexible and efficient. It is compatible with both alphanumeric and numeric pagers, automatically switching keyboard modes for seamless operation.
For enhanced functionality, an optional Alarm Input version enables integration with external devices such as smoke detectors or machinery, sending instant alerts to staff when emergencies occur.
Whether in restaurants, hospitals, hotels, or industrial settings, the SC-800A provides a reliable and intelligent paging solution that keeps communication flowing smoothly.
Feel free to contact us, and we will provide you with the most suitable solution for your business needs. Explore more wireless equipment application videos.
Touchsreen Transmitter (SC-800A) – Product Description
Main Features
- Supports up to 88 capcodes (including group codes)
- User-friendly touch screen interface
- Displays month, date, year, and time
- Programming and charging via Type-C port
- Active voltage range: DC 5V / 2A
- Output power: up to 1 watt
- Manual programming available
- Wireless coverage: up to 1–1.5 km in open space, about 200–300 m indoors
- Alarm Input (optional)
Smart Communication Functions
- Easy contact management — manage up to 80 editable contacts and 8 groups
- Convenient messaging methods — supports text, canned messages, and stickers
- Compatibility with different message formats — works with both alphanumeric and numeric pagers
- Optional alarm input support — automatically sends alerts when external devices trigger an event
Applications
- A perfect solution for fast-food restaurants, restaurants, hotels, dining halls, cafés, bars, and other communication-demanding environments.
額外資訊
| LCD ON / OFF | <700mA / <300mA |
|---|---|
| Total Can use Hours | 10 hours |
| Frequency | UHF 430~470 MHz |
| Output Power | 1W |
| Harmonic Radiation | 60 dBc or less -36dBm |
| Frequency Stability | ±3 ppm for UHF |
| Dimension | 188(W)x126(H)x24.5(T) mm |
| Weight | 363g (No Battery) |
| Protocol | POCSAG |
| Baud rate | 512 / 1200 / 2400 bps |
| Capcode | 80 Guest Capcodes + 8 Group Capcodes |
| Message | 120 characters / message |
| Sent Folder | 10 Messages |

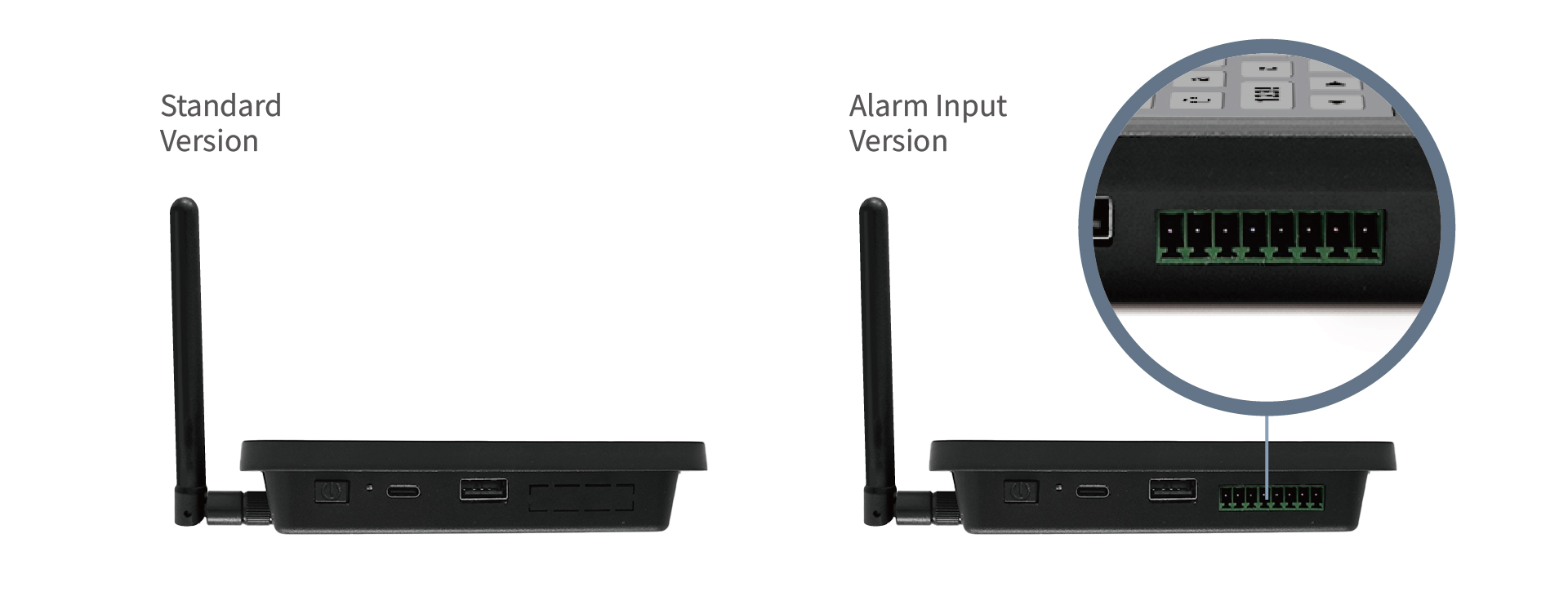

SC-800A Alarm input

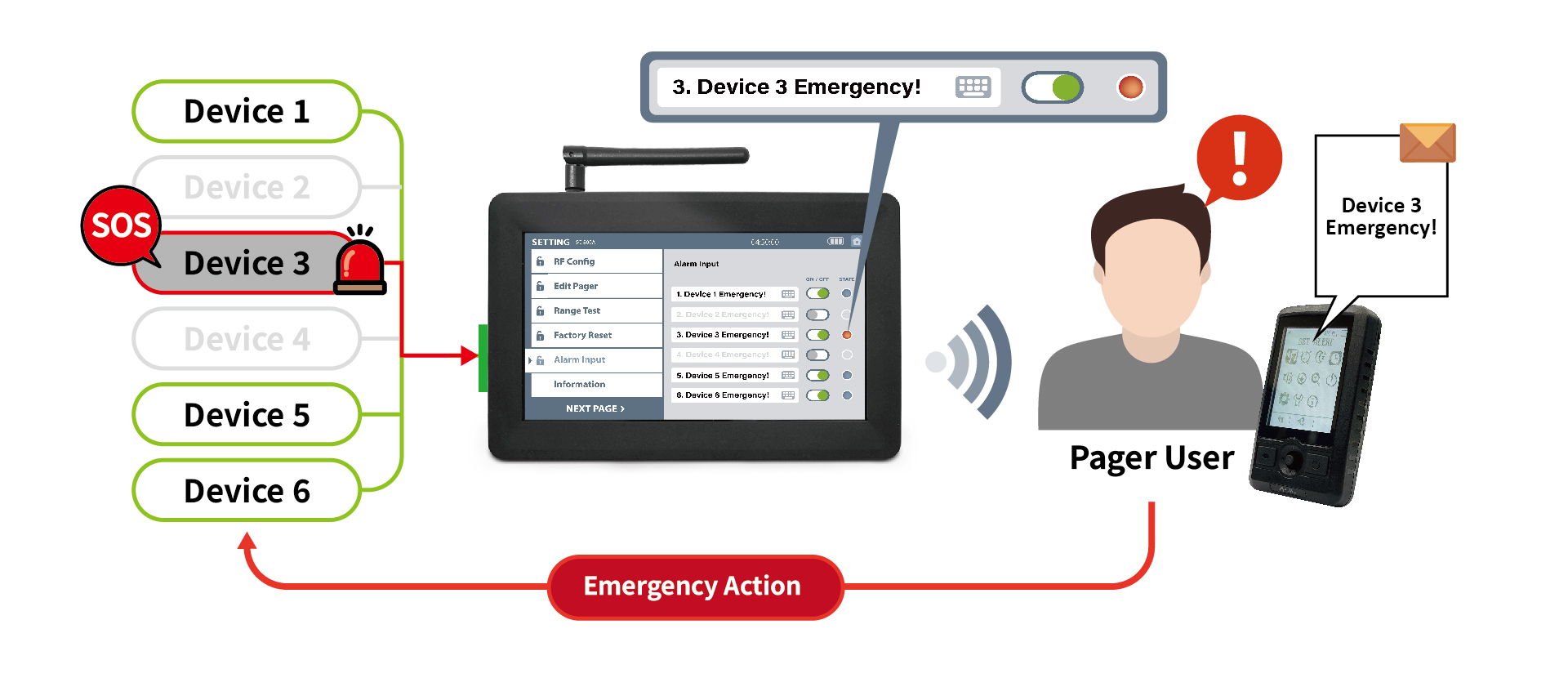

In addition to the standard SC-800A, we also offer an advanced version equipped with six alarm inputs for connecting external devices. If an emergency occurs — for example, an equipment malfunction, a fire incident, or a person requesting help — the SC-800A will be triggered to send a signal, promptly notifying relevant personnel for immediate action.
To learn more, feel free to contact us.
ALARM INPUT APPLICATION
