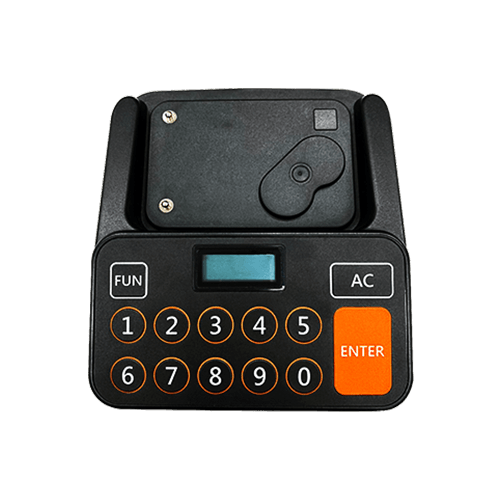

A08 Transmitter A08-TCP

SKU:AL-A08-TCP

• Wireless POCSAG Transmitter
• Manual programmable
• Compact Size

Add to quote

Description

A08 Guest Calling System is the perfect solution for restaurants, food courts, coffee shops, and bars. Easy to use with compact size. IP67 dust, water, and shatter proofing. Lithium-polymer battery, no memory effect (no need to be fully charged for the first charge), long-lasting battery life, fast charging.

More details:

• Wireless POCSAG transmitter
• Up to 99 capcodes
• Desk type
• User-friendly interface
• 13 Buttons
• Active voltage range: DC 5V/3A
• Manual programmable
• Coverage: open space 800-1000m; indoor: 200-300m
• For restaurants, hotels, dining halls, cafes, and bars

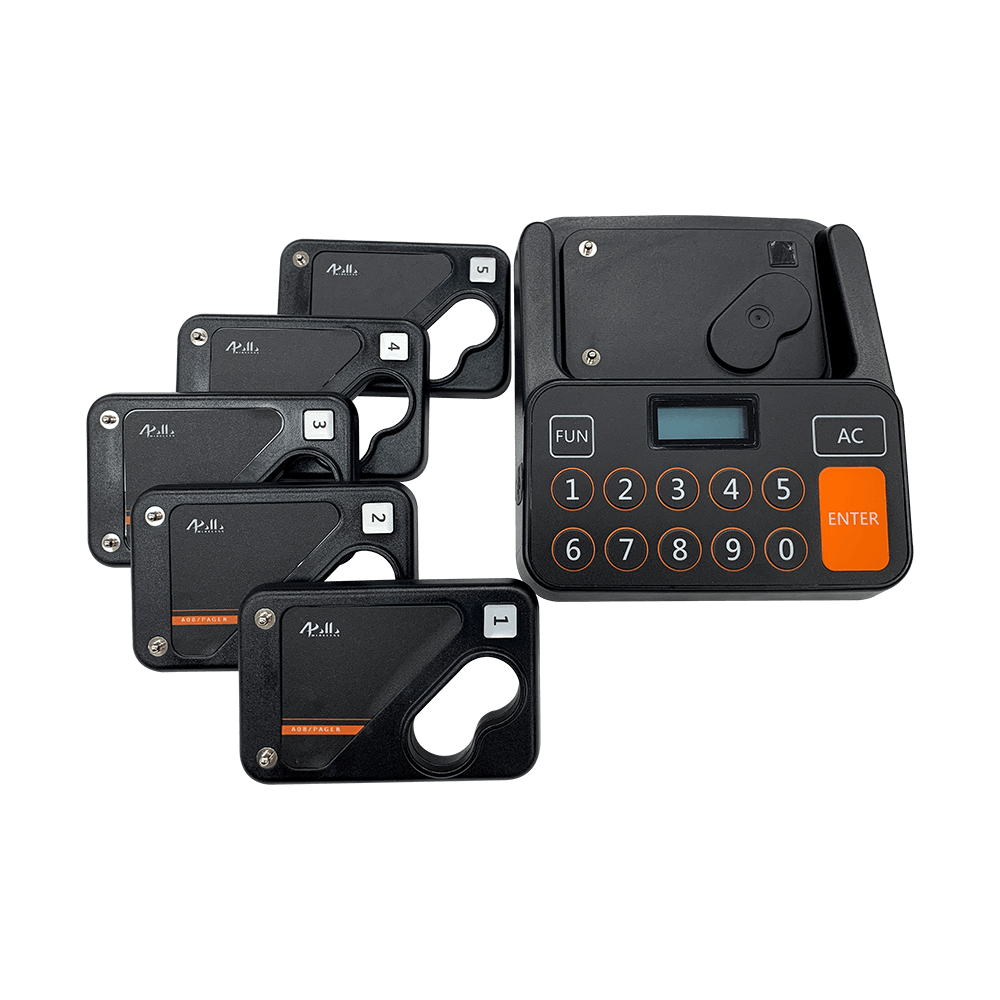

• A08-TCP can charge up to 10 pcs of AL-A08 pager at the same time

Additional information

Frequency	UHF 430~470 MHz
Channel Spacing	12.5KHz, 25KHz
Output Power	10mW, 100mW
Harmonic Radiation	– 60 dBc or less -36dBm
Frequency Stability	±1 ppm for UHF
Antenna	Helical antenna
Current Consumption	<10mA
Code Format	POCSAG
Spurious Rejection	40dB below carrier
Alert Tone Loudness	78db @ 10 cm
Capcodes	4 Capcodes for POCSAG
Dimension	130(W)×145(H)×50(D) mm
Weight	246 g
Modulation Type	F3D
