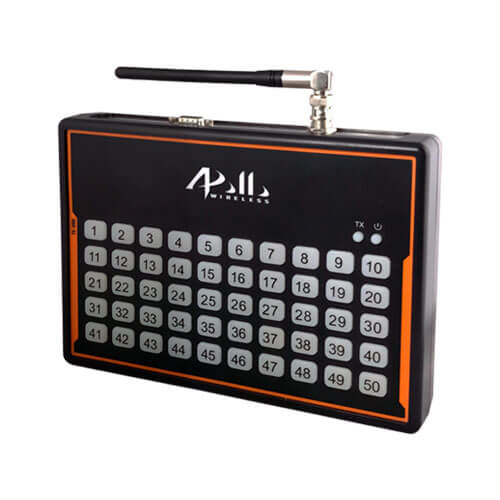

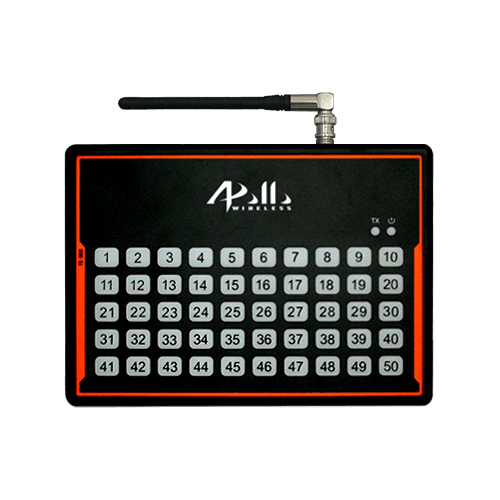

50 Backlit Buttons Transmitter (TE-300)

SKU:TE-300

  • Wireless POCSAG Transmitter
  • 50 backlit buttons, capable of pairing with 50 sets of pagers simultaneously
  • Suitable for desktop or wall-mount installation
  • Output power up to 1 watt
  • D-Sub connector for programming

Description

50 Backlit Buttons Transmitter (TE-300), capable of simultaneous pairing with 50 sets of receivers. The panel consists of 50 backlit buttons, clearly displaying the status of each pager. It operates with simplicity, providing internal paging with a single button press, and cancellation with another press. Programmable features include automatic repeat calling and timeout settings. Whether used for staff or customer calls, the TE-300 is your optimal choice.



Suitable for various business sectors:

  • Restaurants, lounges, bars, and coffee shops
  • Hotels, resorts, and casinos
  • Healthcare facilities (hospitals, doctor’s offices, nursing homes, patient or resident common areas, and waiting areas)
  • Schools, colleges, and universities
  • Automotive dealerships and service centers



When placing an order, please select any receiver model that suits your intended use. If you cannot find a suitable option, feel free to contact us, and we will provide you with the most suitable solution for your business needs. Explore more wireless equipment application videos.



50 Backlit Buttons Transmitter (TE-300)– Product Description

  • Wireless POCSAG Transmitter
  • Desk Type
  • Friendly user interface
  • 50 buttons
  • Active Voltage Range: DC 9V/2.2A
  • Output power up to 1 watt
  • D-Sub for programming
  • Range test 1 km in open space

Additional information

Frequency

VHF 135~174 MHz, UHF 430~470 MHz

Channel Spacing

12.5KHz, 25KHz

Output Power

1W

Harmonic Radiation

60 dBc or less -36dBm

Frequency Stability

±2.5 ppm at -10°C~+60°C

Output Connect

BNC (F)

Current Consumption

Standyby: 120mA; Transmit: 420mA

Dimension

232 (L) x 170 (W) x 50 (H) mm

Weight

650 g

[ USER MANUAL ]
