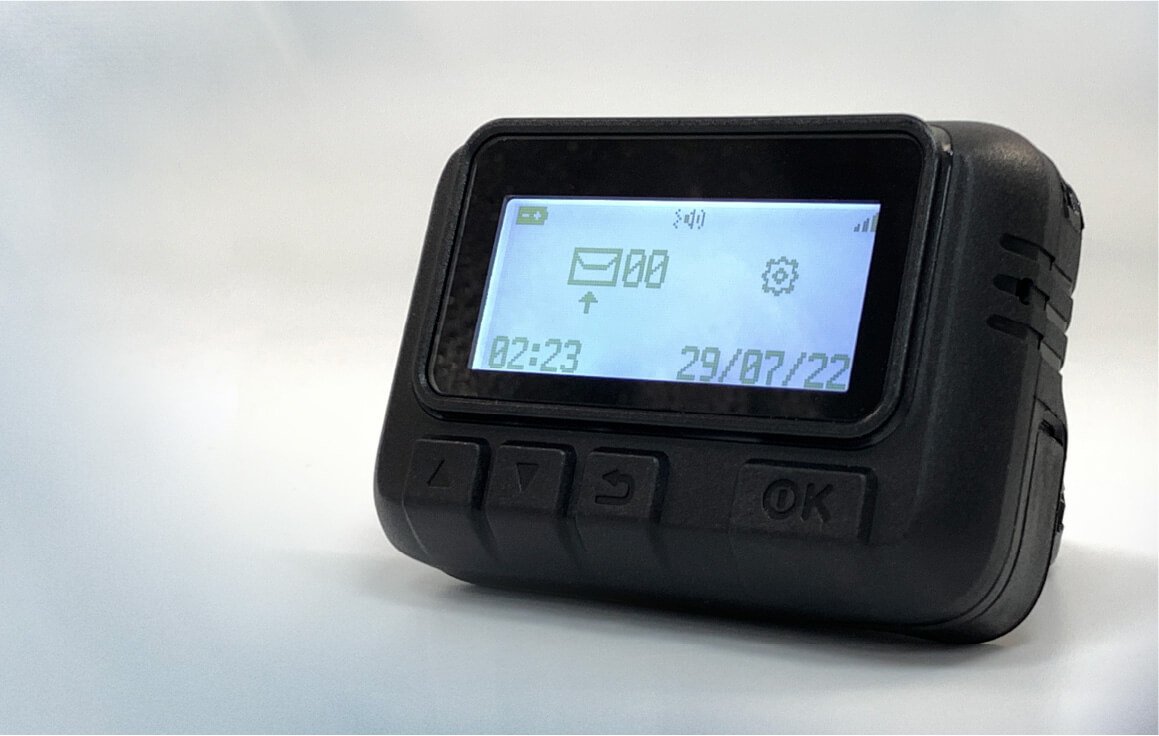

Rugged Pager AR924
IP67 Dust and Waterproof
Up to 85 Days of Battery Life

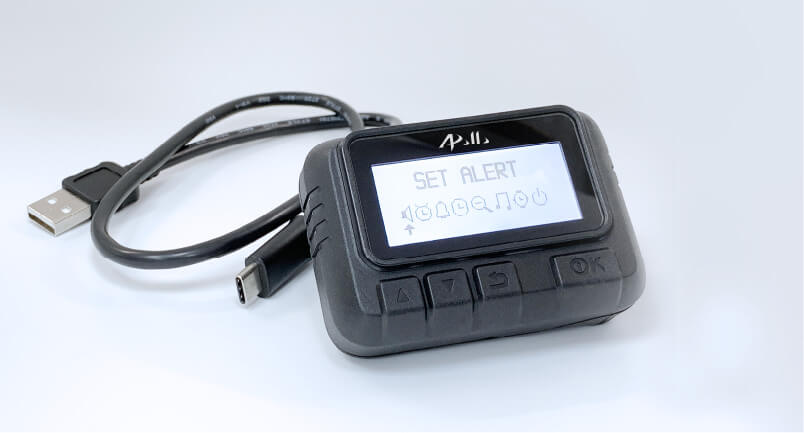

Rechargeable battery with USB-C connector
Rugged Pager AR924
IP67 Dust and Waterproof
Up to 85 Days of Battery Life
Rechargeable battery with USB-C connector
Device Feature
- Compact, 4 buttons operation with two-way scrolling
- Battery life – up to 85 days with 2.5 hours for full battery charge
- USB-C charging connector
- Message preview scroll down list
- Battery Level indicator
- Receive indicator
- Stopwatch function
- LED backlight
- PC programmable and Hand Programmable
Device
Feature
Feature
- Compact, 4 buttons operation with two-way scrolling
- Battery life – up to 85 days with 2.5 hours for full battery charge
- USB-C charging connector
- Message preview scroll down list
- Battery Level indicator
- Receive indicator
- Stopwatch function
- LED backlight
- PC programmable and Hand Programmable

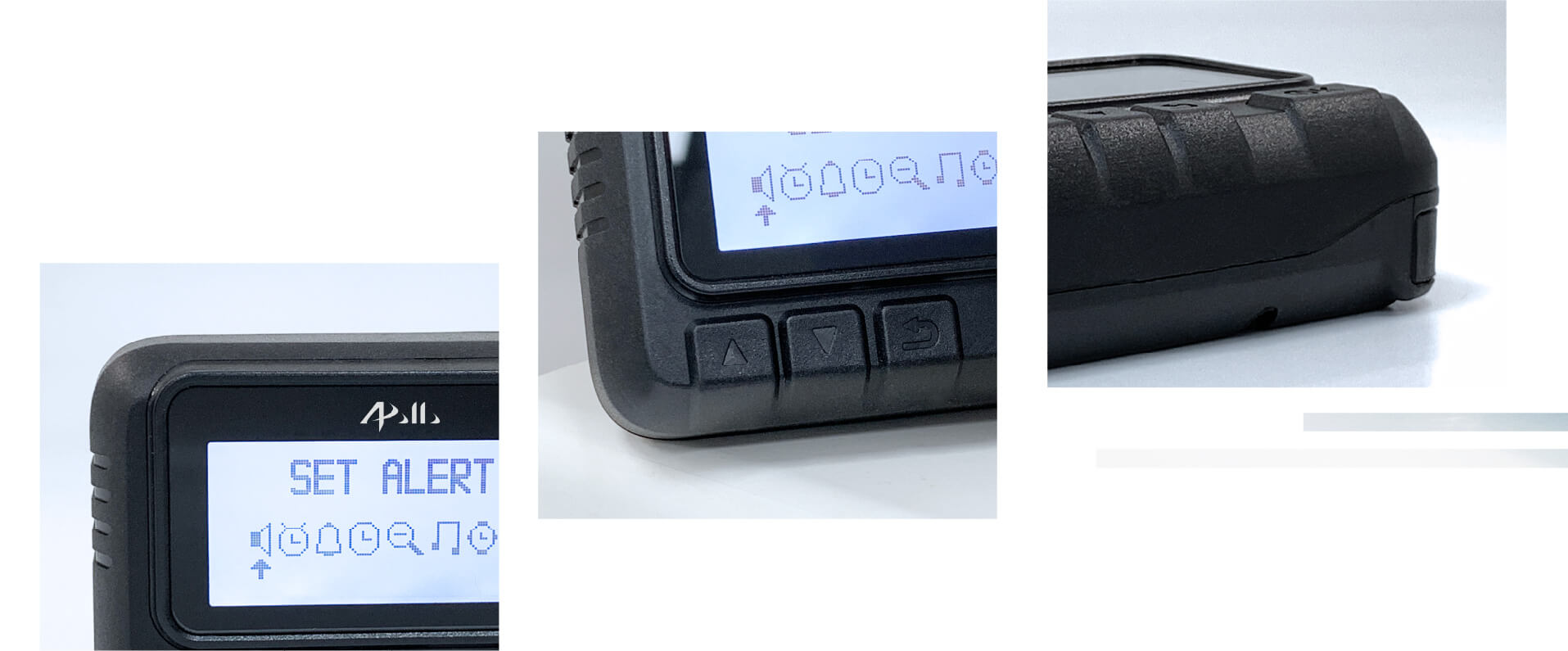

Rugged
Design
- Double Injection Rugged case
- Drop test 1.5m
- IP67 – dust and waterproof
- Sealed USB-C connector
- Buzzer one-way seal
- Display IK06 impact test
- Display H6 Scratch test
- Sun radiation endurance
- Display is readable during direct sunlight
Rugged Design
- Double Injection Rugged case
- Drop test 1.5m
- IP67 – dust and waterproof
- Sealed USB-C connector
- Buzzer one-way seal
- Display IK06 impact test
- Display H6 Scratch test
- Sun radiation endurance
- Display is readable during direct sunlight
Configurable
Flexible
Design
- Configurable frequencies and capcodes over USB & manual
- Show/Hide screens over USB
- All timeouts are configurable (display, backlight, reminders, and more)
Configurable Flexible Design
- Configurable frequencies and capcodes over USB & manual
- Show/Hide screens over USB
- All timeouts are configurable (display, backlight, reminders, and more)
Maintenance
Provisions
- Separated main board and charger board
- Replaceable battery (spring contacts)
- Replaceable vibration motor (spring contacts)
- Replaceable display with connector
- Replaceable silicone seal
- Manual self-test
Maintenance Provisions
- Separated main board and charger board
- Replaceable battery (spring contacts)
- Replaceable vibration motor (spring contacts)
- Replaceable display with connector
- Replaceable silicone seal
- Manual self-test
Technical Specifications
| Frequency | UHF: 450~470MHz |
| Code Format | POCSAG |
| Capcodes | 8, Frame independent |
| Message Capacity | 30 messages 100 characters per message |
| Display | High resolution 146×64 LCD Screen, very clear and bright backlight. |
| Water and Dust Resistance | IP 67 |
| Drop Test | 1.5m |
| Channel Spacing | 25 kHz |
| Frequency Deviation | 4.5 kHz |
| Image Rejection | >40dB |
| Data Transmission Rate | 512/1200/2400bps for POCSAG |
| Receiving Sensitivity | 512bps:-110dBm, 1200bps:-108dBm, 2400bps:-106dBm |
| Dimensions (mm) | 73(L) x 50(W) x 27(H) |
| Weight | 95g including battery |
| Operating Temperature | -10C to +50C |
| Battery and Charging | Lithium battery, up to 85 days with 2.5 hours for full battery charge, USB-C charging |
| Languages | Main Language-English Various languages available by client request |
| Approvals | CE |
