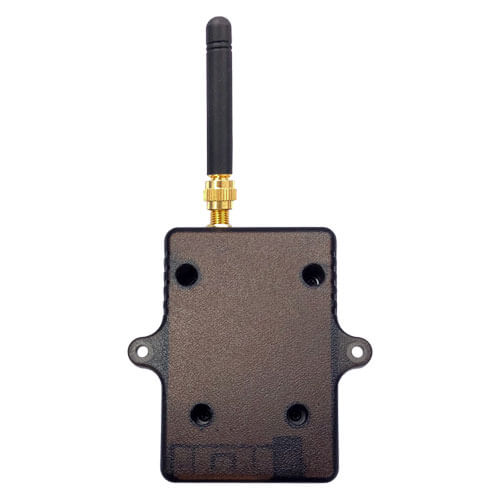

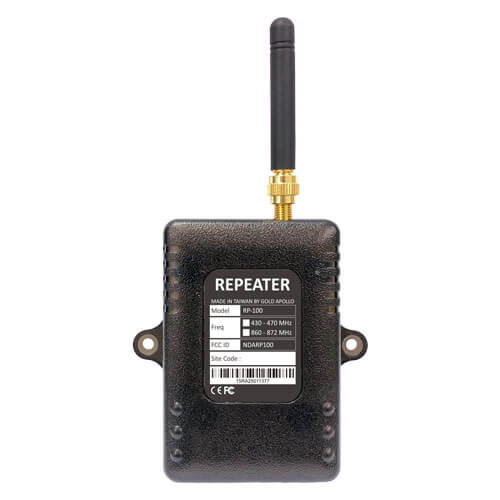

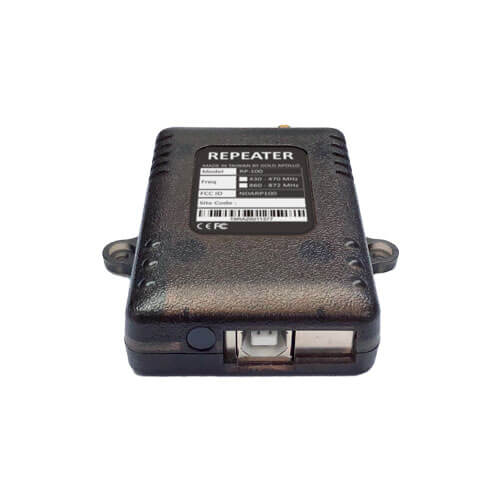

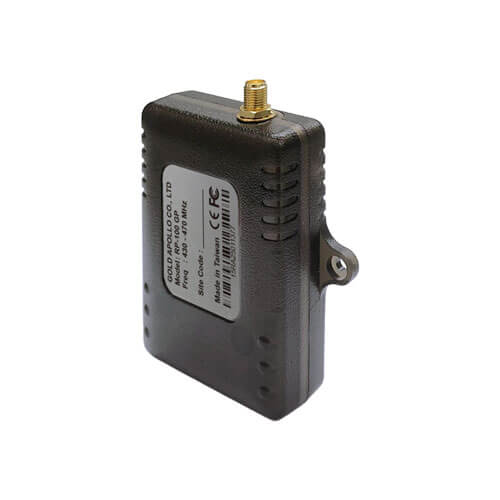

10mW POCSAG Repeater (RP-100)


  • Repeat Pocsag Signal
  • Support various frequencies
  • Switchable output power, 10mW and 100mW


10mW POCSAG Repeater (RP-100) | Human longs for boundless way of communication. That why Gold Apollo has devoted on wireless solution over decades.We create Mini Power Repeater to boost performance of POCSAG wireless device.With powerful and advanced microcontroller, RP-100 expands coverage of all devices made by Gold Apollo.Its compact and power saving feature allows you to have more possibilities.


In general, wireless application systems offer a convenient and fast communication method in various fields, contributing to increased work efficiency, emergency response capabilities, and collaborative teamwork. If you would like to learn more about our product applications, feel free to contact us via email at sales@gapollo.com.tw. We will provide you with the most comprehensive wireless device solutions. Additionally, you can also explore more through our collection of wireless device application videos.


10mW POCSAG Repeater (RP-100)– Product Description

  • Repeat POCSAG Signal
  • Support TI (Texas Instruments) CC1120
  • Compact size
  • High performance MCU STM32 adopted
  • Support various frequencies
  • Error correction
  • Switchable output power, 10mW and 100mW
  • Signal strength monitoring by RSSI prevents from interference
  • Multi-Layer function to connect multiple repeaters serially
  • Over 2 million RICs available (8~2097151)
  • A group of RICs in certain interval for whitelist
  • 14 RICs available for block list
  • Powered by 5V via USB Type B
  • SMA connector from industry standard
  • Certified by FCC and CE


Receiver Specifications

Frequency Stability ±1 ppm
Adjacent Channel Selectivity 12.5 kHz : > 50 dB, 25 kHz : > 50dB

Additional information


UHF 430~470 MHz, UHF 860~872 MHz

Output Power

10mW, 100mW

Channel Spacing

12.5KHz, 25KHz

Modulation Type

F3D, F3E

Maximum Deviation

±2.5kHz, ±4.5kHz

Baud Rate(bps)

512 / 1200 / 2400

Conducted Spurious Emission

less – 55dBc

Operation Temperature

-10º to 60º C

Storage Temperature

-10º to +60º C

Power Supply


Current Consumption

TX: 10mW<180mA ; 100mW<240mA, RX : < 180mA




53(L) x 79(W) x 20(H) mm


Approximately 65 g
