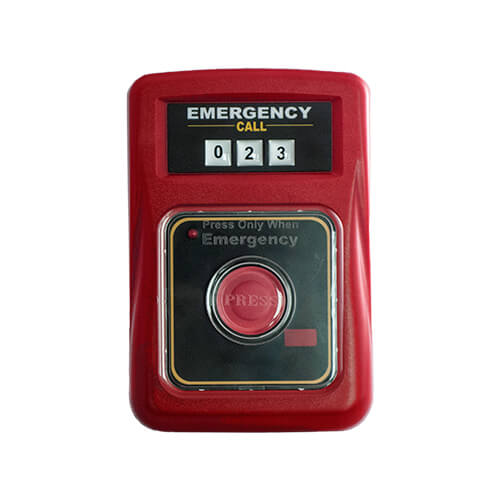

Emergency Call Button (JD-110B)
SKU:JD-110B- Power saving device
- Emergency button
- No need for additional wiring work
- Reed switch – to dismiss the emergency call (Alarm must be deactivated through JD-120E)
- Can be used in conjunction with the 50-Button Emergency Call Panel (RE-300E)
Description
The Emergency Call Button (JD-110B) is a simple emergency calling device designed for use in dispatch centers, facility maintenance and engineering, police forces, shopping malls, and power plants. In the event of an emergency, users can send a call by pressing the button.
Gold Apollo provides a call button solution that can use POCSAG and FLEX, message display including alphanumeric/numeric/voice types, and transmitters. The RX-100 wireless radio frequency receiver can decode signals in the air and transmit them back to the mainframe through an internal network, supporting expansion for up to 32 sets. (Gold Apollo Wireless Communication System)
Emergency Call Button (JD-110B) – Product Description
- Pressable acrylic cover from unintentional trigger
- Wall – mounted capability
- No need for additional wiring work
- Durable construction
- Power saving device
- Emergency button
- LED indicator
- Reed switch – to dismiss the emergency call (Alarm must be deactivated through JD-120E)
- Output power: 10mW
- The coverage can reach up to 200-300 meters in open space
- Can be used in conjunction with the 50-Button Emergency Call Panel (RE-300E)
Additional information
| Frequency | UHF 430~470 MHz |
|---|---|
| Modulation Type | FSK |
| Transmitting Power | 10 mW |
| Maximum Deviation | ±2.5kHz |
| Harmonic Radiation | 60 dBc or less -36dBm |
| Frequency Stability | ±3 ppm at –10°C ~ +60°C |
| Antenna | Wire 932mm |
| Active Voltage Range | 4.8~6.5V (DC 5V or Alkaline AA battery *4 |
| Current Consumption | Standby : 180μA Transmit : 30mA (include LED) |
| Dimension | 100(W)×150(L)×45.2(H) mm |
| Weight | 211.5 g |
